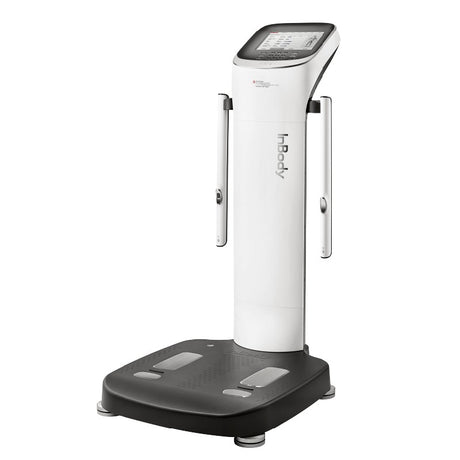

A high-quality body composition device designed for medical and fitness professionals, the InBody 970 goes beyond standard outputs, providing a wealth of information across multiple Result Sheets. Use the Comparison, Research, and Evaluation Result Sheets to monitor health over time, gather in-depth research data, and deliver evidence-based insights.

• Display Type 1280 x 800 10.1inch Color TFT LCD

• Internal Interface Touchscreen, Keypad

• External Interface RS-232C 4EA, USB Host 2EA, USB Slave 1EA, LAN(10/100T) 1EA, Bluetooth

• 1EA, Wi-Fi 1EA

• Compatible Printer InBody970 compatible printers available at www.inbodyservice.com

• Dimensions 614.1(W) x 963.8(L) x 1239.3(H): mm

• Equipment Weight 46kg (101.4lb)

• Test Duration About 90 seconds

• Operation Environment 10~40°C (50~104'F), 30~75% RH, 70~106kPa

• Storage Environment -10~70°C (14~158'F) ,10~80% RH, 50~106kPa (No Condensation)

• Weight Range 5~300kg (11~660.1lb)

• Age Range 3~99 years

• Height Range 95~220cm (3ft 1.40in ~ 7ft 2.61in)

STADIOMETER FOR KIDS
Measurement Item:- Height, Temperature,Humidity
Height Range:- 50-200cm

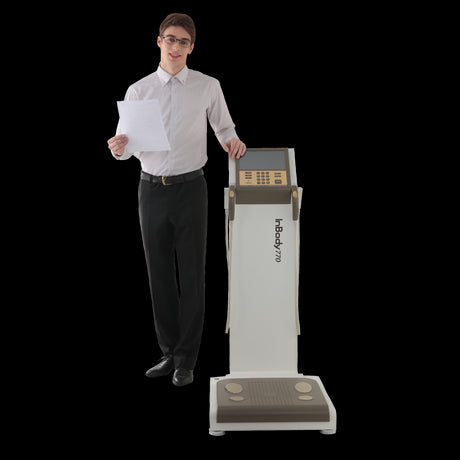

The research-grade InBody 770 body composition and body water analyzer goes beyond traditional body composition analysis and takes a deeper look into body water.

Bio electrical Impedance Analysis (BIA)

Measurement Items Bio electrical Impedance (Z)

30 Impedance Measurements by Using 6 Different Frequencies

(1kH, 5kHz, 50kHz, 250kHz, 500kHz, 1000kHz) at Each of

5 Segments (Right Arm, Left Arm, Trunk, Right Leg, and Left Leg)

Reactance (Xc)

15 Impedance Measurements by Using 3 Different Frequencies

(5kHz, 50kHz, 250kHz) at Each of 5 Segments (Right Arm, Left Arm,

Trunk, Right Leg, and Left Leg)

Electrode Method Tetrapolar 8-Point Tactile Electrodes

Measurement Method Direct Segment Multi-frequency Bio electrical Impedance Analysis Method (DSM-BIA)

Simultaneous Multi-frequency Impedance Measurement (SMFIM)

Specifications are subject to be changed without prior notice.

Applied Rating Current 80μA A(±10μA)

Adapter Manufacture Bridge Power Corp.

Model JMW140KA1240F02 or BPM040S12FXX

Power Input AC 100 ~ 240V, 50/60Hz, 1.2A

Power Output DC 12V, 3.4A

Display Type 800 × 480 10.2inch Color TFT LCD

Internal Interface Touchscreen, Keypad

External Interface RS-232C 4EA, USB HOST 2EA, USB SLAVE 1EA, LAN (10T) 1EA,

Bluetooth 1EA, Wi-Fi 1EA

Compatible Printer Laser/Inkjet Printers (Printers recommended by InBody)

* A list of printers compatible with the InBody770 can be found at http://www.inbodyservice.com

Dimension 526 (W) × 854 (L) × 1175 (H): mm

20.7 (W) × 33.6 (L) × 46.3 (H): inch

Equipment Weight 38kg (83.8lbs)

Testing Time About 60 seconds

Operation Environment 10 ~ 40℃ (50 ~ 104℉), 30 ~ 75% RH, 70 ~ 106kPa

Storage Environment -10 ~ 70℃ (14 ~ 158℉), 10 ~ 80% RH, 50 ~ 106kPa (No Condensation)

Testing Weight Range 10 ~ 270kg (22.0 ~ 595lbs)

Testing Age Range 3~99 years

Height Range 95 ~ 220cm (3ft. 1.40in. ~ 7ft. 2.61in.)

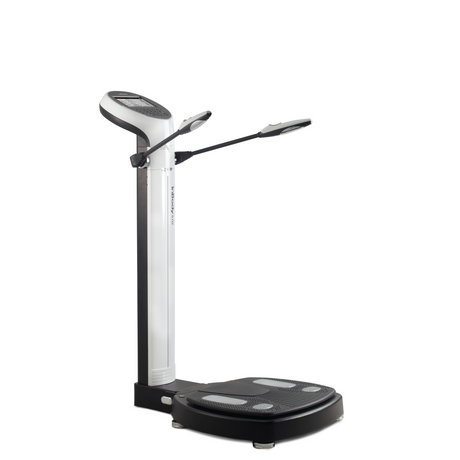

The InBody 570 body composition analyzer goes beyond traditional body composition analysis, measuring fat, muscle, and total body water.

Bio electrical Impedance Analysis (BIA)

Measurement Items Bio electrical Impedance (Z)

15 Impedance Measurements by Using 3 Different Frequencies

(5kHz, 50kHz, 500kHz) at Each of 5 Segments (Right Arm,

Left Arm,Trunk, Right Leg, and Left Leg)

Electrode Method Tetra polar 8-Point Tactile Electrodes

Measurement Method Direct Segment Multi-frequency Bio electrical Impedance Analysis Method (DSM-BIA)

Body Composition

Calculation Method No Empirical Estimation

Applied Rating Current 400μA (± 40μA)

Adapter Manufacture Bridge Power Corp.

Model JMW140KA1240F02

Power Input AC 100 ~ 240V, 50/60Hz, 1.2A

Power Output DC 12V, 3.4A

Display Type 800 × 480 7inch Color TFT LCD

Internal Interface Touchscreen, Keypad

External Interface RS-232C 4EA, USB HOST 2EA, USB SLAVE 1EA, LAN (10T) 1EA,

Bluetooth 1EA, Wi-Fi 1EA

Compatible Printer Laser/Inkjet Printers (Printers recommended by InBody)

* A list of printers compatible with the InBody570 can be found at http://www.inbodyservice.com

Dimension 522(W) × 893(L) × 1113(H): mm

20.55(W) × 35.16(L) × 43.82(H): inch

Equipment Weight 24kg (52.9lbs)

Testing Time About 50 seconds

Operation Environment 10 ~ 40℃ (50 ~ 104℉), 30 ~ 75% RH, 70 ~ 106kPa

Storage Environment -10 ~ 70℃ (14 ~ 158℉), 10 ~ 80% RH, 50 ~ 106kPa (No Condensation)

Testing Weight Range 5 ~ 250kg (11.0 ~ 551.1lbs) 23 / 25 T

Testing Age Range 3 ~ 99 years

Height Range 95 ~ 220cm (3ft. 1.4in. ~ 7ft. 2.6in.)

Bio electrical Impedance Analysis (BIA)

Measurement Items Bio electrical Impedance (Z)

15 Impedance Measurements by Using 3 Different Frequencies

(5kHz, 50kHz, 250kHz) at Each of 5 Segments (Right Arm,

Left Arm, Trunk, Right Leg, and Left Leg)

Electrode Method Tetra polar 8-Point Tactile Electrodes

Measurement Method Direct Segment Multi-frequency Bio electrical Impedance Analysis Method (DSM-BIA )

Simultaneous Multi-frequency Impedance Measurement (SMFIM)

Body Composition

Calculation Method No Empirical Estimation

Applied Rating Current 200μA (±40μA)

Adapter Manufacture Bridge Power Corp.

Model BPM040S12F07

Power Input AC 100-240V, 50-60Hz, 1.2A

Power Output DC 12V, 3.4A

Display Type 480 × 800 7inch Color TFT LCD

Internal Interface Touchscreen, Keypad

External Interface RS-232C 4EA, USB HOST 2EA, USB SLAVE 1EA, LAN (10T) 1EA,

Bluetooth 1EA, Wi-Fi 1EA

Compatible Printer Laser/Inkjet Printers (Printers recommended by InBody)

* A list of printers compatible with the InBody can be found at http://www.inbodyservice.com

Dimension 522 (W) × 874 (L) × 1059 (H): mm

20.6 (W) × 34.4 (L) × 41.7 (H) : inch

Equipment Weight 26kg (57.3lbs)

Testing Time About 15 seconds

Operation Environment 10 ~ 40°C, 30 ~ 75% RH, 70 ~ 106 kPa

Storage Environment -10 ~ 70°C, 10 ~ 80% RH, 50 ~ 106 kPa (No Condensation)

Testing Weight Range 10 ~ 250kg (22.0 ~ 551.2lbs)

Testing Age Range 3 ~ 99 years

Height Range 95 ~ 220cm (3ft. 1.40in. ~ 7ft. 2.61in.)

Printer
The InBody 270 Thermal Printer is a portable printer that connects to your InBody 270 device.  It prints out the body composition analysis results on receipt paper (2 1/4" x 80', 2 1/4" x 85', 2 1/4" x 165) and is convenient to carry with you if you do not have ready access to a full-sized printer.

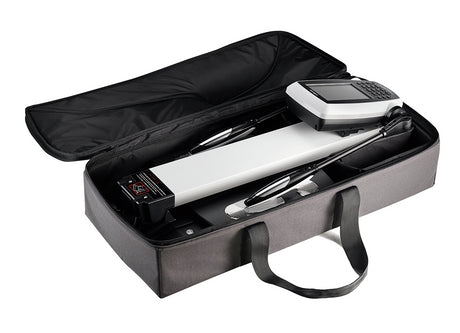

The InBody 270 may be folded up and transported safely in the specially designed InBody 270 Carrying Case.  This case will allow you to transport your InBody 270 when you travel to other locations.

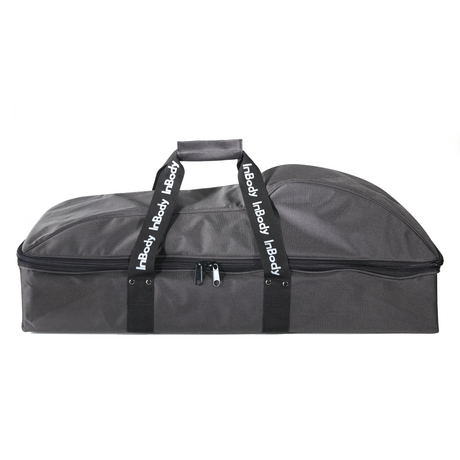

FABRIC BAG INBODY 270

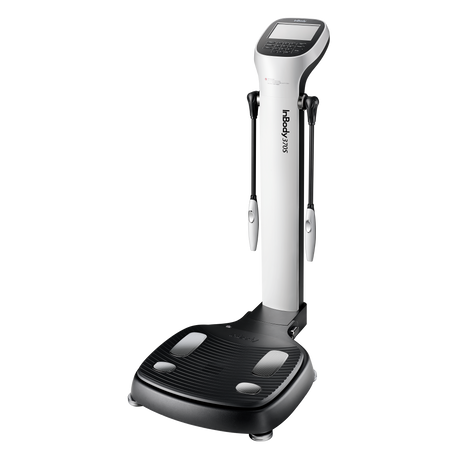

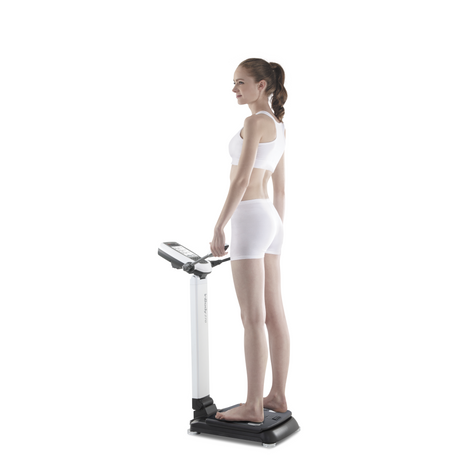

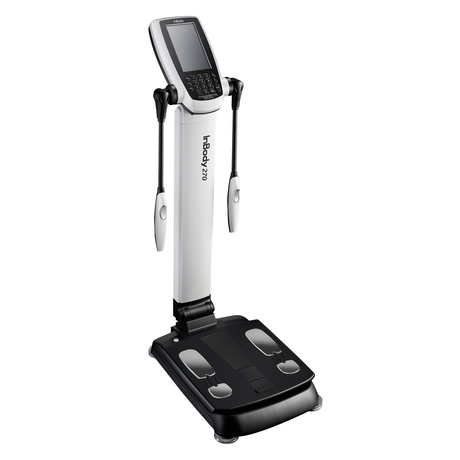

Designed with traveling professionals in mind, the InBody 270 body composition analyzer is portable yet features the accuracy and precision customers expect from InBody.

Bio electrical Impedance Analysis (BIA)

Measurement Items Bio electrical Impedance (Z)

10 Impedance Measurements by Using 2 Different Frequencies

(20kHz, 100kHz) at Each of 5 Segments (Right Arm, Left Arm,

Trunk, Right Leg, and Left Leg)

Electrode Method Tetra polar 8-Point Tactile Electrodes

Measurement Method Direct Segment Multi-frequency Bio electrical Impedance Analysis Method (DSM-BIA )

Simultaneous Multi-frequency Impedance Measurement (SMF-BIA)

Body Composition

Calculation Method No Empirical Estimation

Applied Rating Current 200μA (±40μA)

Adapter Manufacture Bridge Power Corp.

Model BPM040S12F07

Power Input AC 100 - 240V, 50 - 60Hz, 1.2A

Power Output DC 12V, 3.4A

Display Type 480 × 800 7inch Color TFT LCD

Internal Interface Touchscreen, Keypad

External Interface RS-232C 1EA, USB HOST 2EA, USB SLAVE 1EA, LAN (10T) 1EA,

Bluetooth 1EA, Wi-Fi 1EA

Compatible Printer Laser/Inkjet Printers (Printers recommended by InBody)

* A list of printers compatible with the InBody can be found at http://www.inbodyservice.com

Dimension 356 (W) × 796 (L) × 995 (H): mm

14.0 (W) × 31.3 (L) × 39.2 (H) : inch

Equipment Weight 14kg (30.9lbs)

Testing Time About 15 seconds

Operation Environment 10 ~ 40°C, 30 ~ 75% RH, 70 ~ 106kPa

Storage Environment -10 ~ 70°C, 10 ~ 80% RH, 50 ~ 106kPa (No Condensation)

Testing Weight Range 10 ~ 250kg (22.0 ~ 551.2lbs)

Testing Age Range 3 ~ 99 years

Height Range 95 ~ 220cm (3ft. 1.4in. ~ 7ft. 2.61in.)
